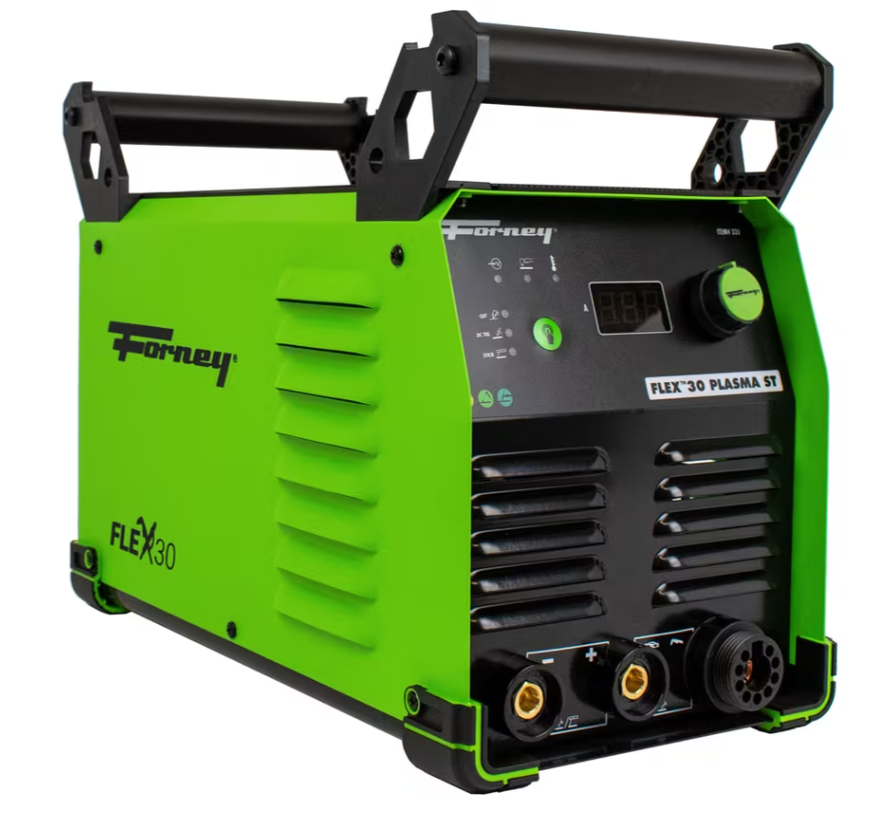

Your chance to bid on a Forney Flex 30 Plasma ST all in one welding & cutting machine is coming this Wednesday! Don’t miss out!
Cleanly cut from thin sheet metal to 3/8” plate (sever cut up to 5/8”). Ideal for many applications including do-it-yourself (DIY) projects, farm & ranch, maintenance and repair, and light industrial work.
PROCESSES
· Stick Welding (SMAW)
· TIG Welding (GTAW) – Requires a TIG torch with a gas valve in the handle (sold separately)
· Plasma Cutting
FOR USE ON
· Mild Steel | Sheet Metal
· Stainless Steel
· Aluminum
· Copper
SPECIFICATIONS
· Lift Arc TIG capable. Requires TIG Torch (Forney ITEM# 85659).
· Output Power (Welding): 120V @ 85A | 240V @ 160A (DC output only)
· Output Power (Cutting): 120V @ 20A | 240V @ 30A
· Input Voltage: 120V/240V
· Electrode Diameter: Up to 5/32”
· Plate Thickness: Up to 3/8”
· Cutting Capacity: 3/8” clean cut | 5/8” sever cut
· Duty Cycle (TIG): 120V: 30% @ 85A | 240V: 30% @ 160A
· Duty Cycle (Stick): 120V: 30% @ 80A @ 30% | 240V: 25% @ 160A
· Duty Cycle (Plasma): 120V: 35% @ 20A | 240V: 60% @ 30A
· Amperage Range (TIG): 120V: 10A-85A | 240V: 10A-160A
· Amperage Range (Stick): 120V: 10A-80A | 240V: 10A-160A
· Amperage Range (Plasma): 120V: 10A-20A | 240V: 10A-30A
· Recommended Air Supply Flow Rate: 4.5 CFM
· Certification: CSA listed
· Phase: Single
· Warranty: 3-year (power source), 1-year (torch)
FEATURES
· Dual-Voltage: Provides the operator flexibility for where their machine can be used.
· All-In-One Metalworking Solution: Cut and weld up to 3/8” thick material with one small, powerful machine.
· Built Tough: Constructed with an all-metal case, built tough to take on the day to day.
· Digital Display: For greater accuracy and control.
